30m Long Range High Power Signal Jammer 8 Bands 16w High Power 24
Hours Work
Descriptions:
The powerful prison blocker has a wide affected frequency ranges to
include CDMA/GSM, DCS,3G,4G LTE,
4G,Wifi. It also has a jamming range up to 30m, depending on the
signal strength in the given area. Within
the range, just turn on the jammer, all wireless connection to 2G,
3G, 4G or Wi-Fi, network will be disabled
at the same time.
The jammer is flexibly applicable for its portability and ease of
charging.

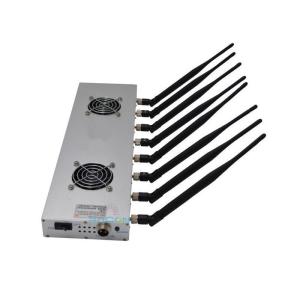

This cell phone signal jammer with 2 cooling fans inside, it can
work for long time 24/7 none stop. There are
8 output frequency bands with 8 omni directional antennas.
Features:
The output power is 12 watts in total.
Block cell phone signal, WiFi and GPS at the same time.
Inside cooling fans and heat sink design ensure the device to work
continuously.
Jamming 5 - 30meters depending on local signal strength
User-friendly ON/OFF switch make it use more helpful.
Six Omni antennas ensure good results
Can customize other cellular standard in the world.
Such as Walkie Talkie,450MHz,GPRS,iDEN,GPS,
Galileo,Compass,Glonass,UMTS,WiFi,AWS,LTE 4G.
Specifications:
| Output port | Frequency | Average output power | Output power |
| LTE800 / LTE700 | 725-821MHz | 33dBm | 2W |
| CDMA800 | 851-894MHz | 33dBm | 2W |
| GSM900 | 925-960MHz | 33dBm | 2W |
| DCS1800 | 1805-1880MHz | 33dBm | 2W |
| PCS1900 | 1930-1990MHz | 33dBm | 2W |
| 3G | 2110-2170MHz | 33dBm | 2W |
| WiFi2.4G | 2400-2500MHz | 33dBm | 2W |
| LTE2600 | 2620-2690MHz | 33dBm | 2W |
| GPS (Optional) | 1570-1580MHz | 33dBm | 2W |
| Total Output Power | 16 Watt |
| Power consumption: | 48W |
| Power Supply | AC110-240V,DC 12V |
| Weight | 3kg |
| Size | 470*360*8.5mm |
| Running temperature | -10℃ to +55℃ |
| Humidity | 5% - 95% |
| Complete accessories | Eight Omni-directional antennas |
| Jamming range(Radius) | 5 - 30meters , depend on local signal strength |
Applications:
1. It can be applied at prisons, meeting rooms, conference rooms,
museums, galleries, theaters, concert
halls, churches, temples, restaurants, classrooms, training
centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas
stations and more, Please do field test first
to make sure no interference happened to the normal operation of
their equipment and instrument.
Accessories of the Cell Phone Signal Jammer
1. 1 x English User Manual (If you need, we will send the scan file
via email, it will avoid some possible
custom issue)
2. AC Power Charger (we will send correct standard power charger
which according customer's shipping address)
3. Mounting Screws
4. Band Specific Antennas x 8
